nVent Hoffman PP18105

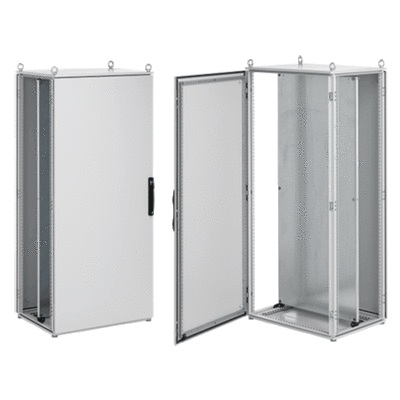

nVent HOFFMAN ProLine™ PP18105 P21 Single Door Modular Industrial Package, 1800 mm L x 1000 mm W x 500 mm D, NEMA 12/IP55 NEMA Rating, Steel
Enclosure Box Hardware and Accessories
7010670
PP18105
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Cover Type: Solid Rear
- Depth: 500
- Finish: Polyester Powder Painted
- Length: 1800
- Lock: Slotted Bit Insert
- Material: Steel
- Nema Rating: NEMA 12/IP55
- Series: P21
- Type: Single Door
- Width: 1000
ProLine Industrial Packages Type 12, 1800x1000x500, Lt Gray, Steel
- Features
- Frames are a roll formed, robotically welded design made of 12 ga steel with solid steel, fully welded corners
- Frames accommodate the 25 mm DIN standard and include rectangular holes for clip nuts and through holes for use with thread forming screws
- External sides, covers and doors are 16 or 14 ga steel
- Seamless foam in place gasket provides a watertight, dust tight seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Solid front doors equipped with a ProLine™ latching system
- Flush bezel handle with defeater
- Reversible hinge, default left hinge, with 130 deg swing
- Slotted bit insert default
- Integral frame channels support the full weight of the mounting plates
- Galvanized full subpanel on single door enclosures, painted subpanel on double door enclosures
- Capped ground studs on door, rear and top panel
- Galvanized mounting plates
