nVent Hoffman PPF1810G

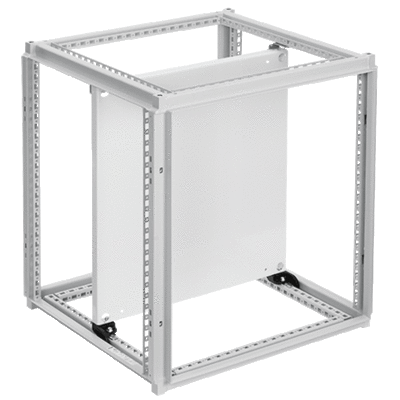

Hoffman ProLine™ PPF1810G P20 Full Subpanel, 1685 mm H x 930 mm W, For Use With ProLine™ 1800 mm H x 1000 mm W Modular Enclosure Frames, Steel
Enclosure Box Hardware and Accessories
7508227
PPF1810G
nVent Hoffman
$0.00
/ ea
- Color: Natural
- Finish: Galvanized/Zinc Plated
- Height: 1685
- Material: Steel
- Series: P20
- Suitable For Use With: ProLine™ 1800 mm H x 1000 mm W Modular Enclosure Frames
- Type: Full
- Width: 930
Full Subpanel, 1800x1000, Conductive, Steel
- Features
- Subpanels are 12 ga steel (subpanels for double bay enclosures 1400 mm tall or taller are 10 ga steel), have flanges on all sides and are painted white
- Conductive subpanels are unpainted galvanized steel
- Subpanels can be mounted at nearly any depth in 25 mm increments
- Panels installed in the rearmost position in joined enclosures provide a continuous mounting surface without requiring joining panels
- Mounting hardware attaches to the top or to the sides of the frame
