nVent Hoffman PTDDC188

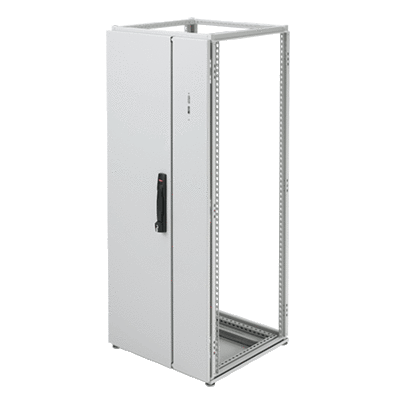

Hoffman ProLine™ PTDDC188 P20 RH Mullion Disconnect Door, 1739 mm H x 794 mm W x 18 mm D, For Use With ProLine™ 1800 mm H x 800 mm W Frames, Steel
Enclosure Box Hardware and Accessories
6934692
PTDDC188
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Depth: 18
- Door Handle: Flush
- Door Latching: 3-Point
- Finish: Polyester Powder Painted
- Height: 1739
- Material: Steel
- Series: P20
- Suitable For Use With: ProLine™ 1800 mm H x 800 mm W Frames
- Type: RH Mullion
- Width: 794
Disconnect Door for ProLine Enclosures, fits 1800x800mm, Preferred Right
- Features
- Disconnect doors provide a means to mount flange mount disconnects to ProLine™ enclosures
- Hinged mullion provides unobstructed access to interior, thus easing equipment installation
- Disconnect mullion is hinged to provide easy disconnect installation and maximum access to subpanel
- Interlocking is provided from master door to disconnect mullion
- Disconnect mullion and disconnect door include 140 deg hinges and are gasketed to maintain enclosure integrity
- A flush handle with defeater operates an internal 3-point latch system on disconnect door and latches to the disconnect mullion
- Steel doors are 14 ga and finished with RAL 7035 light gray textured polyester powder paint finish
- Enclosures with a preferred cutout will accept the disconnect switches listed in the preferred cutout overview section
- ProLine™ enclosures with disconnect doors that have a large cut-out provision will accept the following types of flange mounted disconnect devices
