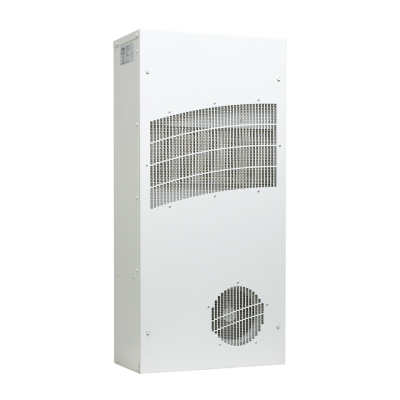

nVent Hoffman TX332826100
Hoffman ClimaGuard Heat Exchanger, Series: MCLHE TX33, 230 VAC, 0.4 A, 92 W Power, 50/60 Hz Frequency, NEMA 3R/4/12 Enclosure, 212/228 cfm at 50/60 Hz Internal Loop, 238/263 cfm at 50/60 Hz External Loop, -40 to 149 deg F Ambient, Mild Steel/Sheet Metal, Light Gray, 33 in H x 15.7 in W x 8.1 in D Dimensions
Supporting Information
- Unique counterflow aluminum core for high efficiency and high performance heat transfer|Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies|Variable speed blowers standard on DC powered units for quiet running|Filterless design for low maintenance and easy cleaning|Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments|Engineered for temperature extremes, corrosive environments and wind driven rain
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Variable speed blowers standard on DC powered units for quiet running
- Low carbon mild steel sheet metal cover for rugged factory environments
- Brand: nVent HoffmanAir Flow Rate: 212/228 cfm at 50/60 Hz Internal Loop, 238/263 cfm at 50/60 Hz External LoopAmbient Temperature Rating: -40 to 149Amperage Rating: 0.4Color: Light GrayDimensions: 33 in H x 15.7 in W x 8.1 in DEnclosure Type: NEMA 3R/4/12Frequency Rating: 50/60Material: Mild Steel/Sheet MetalPower Rating: 92Series: MCLHE TX33
