Eaton B-Line Inc. 48368-43PT

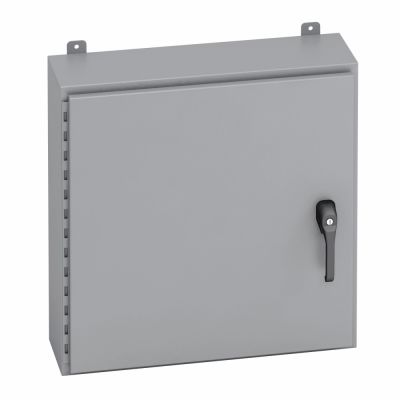

B-Line 48368-43PT 1-Door Enclosure, 36 in W x 8 in D x 48 in H, NEMA 4 NEMA Rating, Carbon Steel
Enclosure General Purpose
7471500
48368-43PT
Eaton B-Line Inc.
$0.00
/ ea
- Color: Gray
- Cover Type: Continuous Hinged
- Depth: 8
- Finish: Polyester Powder Coated
- Height: 48
- Lock: 3-Point Latch
- Material: Carbon Steel
- Mounting Type: Wall
- Nema Rating: NEMA 4
- Panel Size: 32.87 in W x 44.87 in H
- Type: 1-Door
- Width: 36
Eaton B-Line series wall mounted panel enclosure, 48" height, 8" length, 36" width, NEMA 4, Hinged cover, 43PT enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
- Features
- Enclosure and door are fabricated from code gauge steel
- All continuous welded seams are finished smooth
- Internal three-point latching with a keylocking and padlock handles
- Door has a seamless poured in place gasket
- Formed lip around enclosure openings to diverts liquids and contaminants
- Ground stud provided on door and body
- Print pocket is provided
- External feet mounting
- Wash and phosphate undercoat
- Protects against windblown dust and rain, splashing water and hose directed water
