Hubbell Wiegmann ABN12483812

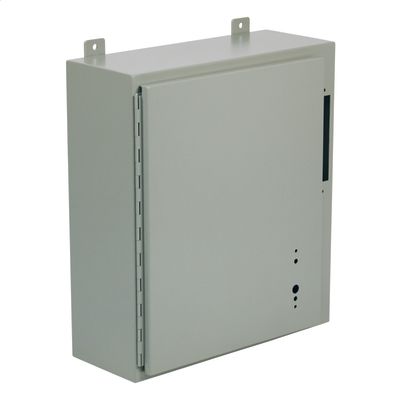

WIEGMANN ABN12483812 1-DOOR DISCONNECT ENCLOSURE, 38.38 IN W X 12.13 IN D X 48 IN H, NEMA 12/13, CARBON STEEL
Enclosure General Purpose
4293386
ABN12483812
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 22346.37
- Color: Gray
- Cover Type: Hinged
- Depth: 12.13
- Finish: Textured/Polyester Powder Coated
- Height: 48
- Lock: 2-Point Latch
- Material: Carbon Steel
- Mounting Type: External Mounting Feet/Flange/Wall
- Nema Rating: NEMA 12/13
- Panel Size: 34 in W x 45 in H
- Series: ABN12
- Type: 1-Door
- Width: 38.38
Wiegmann Disconnect Enclosure, 1-Door, Series: ABN12, 38.38 in Width, 12.13 in Depth, 48 in Height, NEMA 12/13, Hinged Cover, 34 in W x 45 in H Panel, Lock: 2-Point Latch, 22346.37 cu-in, External Mounting Feet/Flange/Wall Mount, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Bodies and doors fabricated from 14 ga steel
- Seams are continuously plasma welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Collar studs for mounting
- Grounding provisions provided
- Holes are provided in body and door for mounting disconnect switch, operating mechanism and door hardware
- Guide brackets and door catch are welded to inside of door
- Locking bars are also provided for door hardware
- Spacers and screws are provided to secure disconnect switch and fuse block adapter plate to the panel
- Print pocket is provided
- Enclosures 40 in H and larger require three-point door hardware
- Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided
