Hubbell Wiegmann SDN12603816

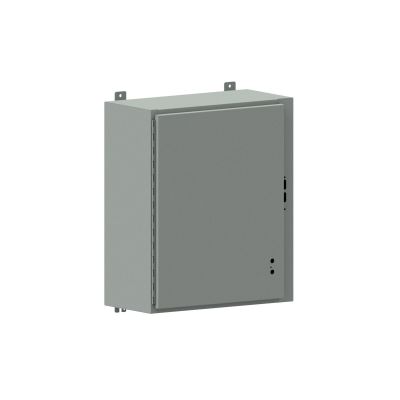

WIEGMANN SDN12603816 1-DOOR DISCONNECT ENCLOSURE, 37.38 IN W X 16.13 IN D X 60 IN H, NEMA 12/13, CARBON STEEL
Enclosure General Purpose
4293376
SDN12603816
Hubbell Wiegmann
$0.00
/ ea
- Capacity: 36176.364
- Color: Gray
- Cover Type: Hinged
- Depth: 16.13
- Finish: Textured/Polyester Powder Coated
- Height: 60
- Lock: 2-Point Latch
- Material: Carbon Steel
- Mounting Type: External Mounting Feet/Flange/Wall
- Nema Rating: NEMA 12/13
- Panel Size: 33 in W x 57 in H
- Series: SDN12
- Type: 1-Door
- Width: 37.38
Wiegmann Disconnect Enclosure, 1-Door, Series: SDN12, 37.38 in Width, 16.13 in Depth, 60 in Height, NEMA 12/13, Hinged Cover, 33 in W x 57 in H Panel, Lock: 2-Point Latch, 36176.364 cu-in, External Mounting Feet/Flange/Wall Mount, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Bodies and doors fabricated from 14 ga steel
- Seams are continuously plasma welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Grounding provisions provided
- Holes are provided in body and door for mounting operating handle, operating mechanism and door closing mechanism
- Guide brackets and interlock door catch are welded to the inside of door
- A cover latch bar is also included for door hardware
- Print pocket is provided
- Enclosures under 40 in H require two-point door hardware
- Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided
- Enclosures do not have padlocking, defeater handle and latching system
- Without handle
