Rittal 9977471

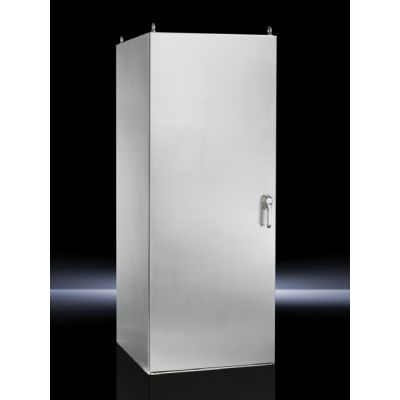

Rittal 9977471 TS/TS8 Compact Modular Enclosure, 24 in W x 24 in D, NEMA 4X/IP66 NEMA Rating, 316 Stainless Steel
Enclosure General Purpose
7747633
9977471
Rittal
$0.00
/ ea
- Capacity: 3150
- Depth: 24
- Finish: Uncoated/Exterior Brushed/Grain 400
- Lock: 4-Point Latch
- Material: 316 Stainless Steel
- Mounting Type: Freestanding
- Nema Rating: NEMA 4X/IP66
- Series: TS/TS8
- Type: Compact
- Width: 24
Rittal Modular Enclosure, Compact, Series: TS/TS8, 24 in Width, 24 in Depth, NEMA 4X/IP66, 4-Point Latch Lock, 3150 lb, Freestanding Mount, 316 Stainless Steel, Uncoated/Exterior Brushed/Grain 400
- Features
- 30 more available mounting space than traditional unibody enclosures of equal dimensions
- 4-point latching system and continuous foamed-in-place gasket provide a water and dust proof environmental seal
- Padlockable handle that provides both easy access and security
- Full functionality and expandability of the TS enclosure series
- A large assortment of internal accessories that allow for three dimensional mounting on all internal surfaces
- Internally removable floor panel that simplifies conduit and wiring installation
- Depth adjustable and removable zinc plated carbon steel mounting panel included with enclosure
- Eyebolts which allow for flexibility during transportation and installation
- Spring loaded, quick release hinges that enable fast and easy door removal and replacement
- Stress cracking, pitting, crevice corrosion resistant
