Littelfuse LS4557-2

Littelfuse POWR-GARD LS4557-2 LS Series Splicer Terminal Splicer Block, 600 VAC, 420 A, 2 Poles, 4 AWG to 600 kcmil Wire, Thermoplastic
Distribution Blocks
6956086 LS4557-2
Littelfuse
$0.00 / ea

Littelfuse LS4557-2
  • Amperage Rating: 420
  • Color: Black
  • Dimensions: 4.75 in H x 4.16 in W x 2.92 in D
  • Material: Thermoplastic
  • Number of Poles: 2
  • Primary Connections/Pole: 1
  • Secondary Connection/Pole: 1
  • Series: LS Series
  • Type: Splicer Terminal
  • Voltage Rating: 600
  • Wire size: 4 AWG to 600 kcmil

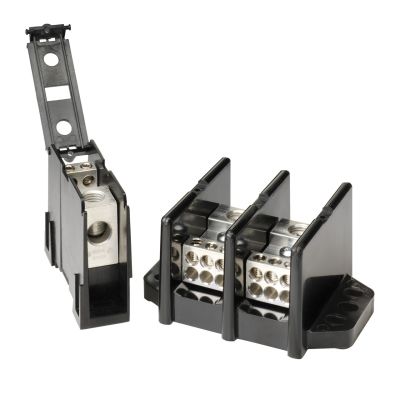

POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover. Applications: Typical applications include heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear, and anywhere power needs to be distributed to more than one load.
QTY
Add to Wishlist
  • Features
  • Two thread cutting screws are furnished for each cover
  • Covers are slotted for easy installation
  • 4 AWG to 600 kcmil aluminum line, 4 AWG to 600 kcmil aluminum load wire size
  • Bolt-in mount
  • (1) box lug primary, (1) box lug secondary
