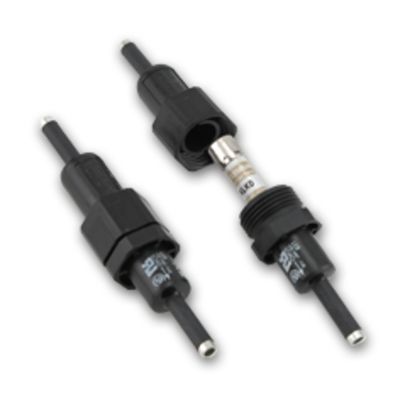

Littelfuse LEXYYCS

Littelfuse LEXYYCS Watertight Fuse Holder, 600 VAC/VDC, 30 A, 12 to 8 AWG Wire, 2 Poles
Fuse Holders and Blocks
7114104 LEXYYCS
Littelfuse
$0.00 / ea

Littelfuse LEXYYCS
  • Amperage Rating: 30
  • Class: CC
  • Connection Type: Thread
  • Dimensions: 5-1/8 in L
  • Fuse Diameter: 13/32
  • Fuse Length: 1-1/2
  • Material: Fiberglass
  • Mounting Type: In-Line
  • Number of Poles: 2
  • Series: LEX
  • Suitable For Use With: CCMR, KLDR and KLKR Series Class CC Fuse, BLF, BLN, FLM, FLQ, KLK and KLKD Midget Fuse
  • Type: Watertight
  • Voltage Rating: 600
  • Wire size: 12 to 8
The Littelfuse 600 V in-line watertight fuse holders are the ideal answer for all high humidity and corrosive environments where fuses are required. Available in both breakaway and non-breakaway, single and double pole versions, these fuse holders allow maximum flexibility for any application.
QTY
Add to Wishlist
  • Features
  • The fuse holders are designed to be touch-safe and flexible for use in a variety of applications
  • Design increases safety by facilitating individual device disconnection for easy servicing, eliminating shock risk
  • Increases efficiency by preventing faulted ballast from severely damaging fixture or device
  • Designed to meet IP67 touch-safe standards
  • Variety of terminations available for flexible design
  • Insulating boots available for harsh environments
  • Copper terminal
  • (1) 12 to 8 AWG and (1) 10 to 2 AWG load/line wire size
  • Four "Y" type set screw terminals accommodate a wide range of solid and stranded Cu or al conductors
  • O-ring and terminal boots form watertight seal, preventing leakage
  • Superior terminal seeds, ultrasonically welded terminals provide maximum strength and eliminate leaking at terminals
  • Break-resistant fiberglass reinforced polymer body resists damage from dropping or impact much better than phenolic look alike
  • Flexible terminations accommodates a wide range of stranded or solid copper conductors with either crimp or screw terminals
