Littelfuse LA70QS40-22F

Littelfuse POWR-GARD LA70QS40-22F Very Fast Acting High Speed Semiconductor Fuse, 40 A, 690 VAC/700 VDC, 200/100 kA Interrupt, Cylindrical Body
Semiconductor Fuses
6886851 LA70QS40-22F
Littelfuse
$0.00 / ea

Littelfuse LA70QS40-22F
  • Amperage Rating: 40
  • Body Size: 22 mm Dia x 58 mm L
  • Body Type: Cylindrical
  • Indicating/Non-Indicating: Non-Indicating
  • Interrupt Rating: 200/100
  • Mounting Type: Stud
  • Series: LA70QS
  • terminal type: Bolted-Down
  • Type: Very Fast Acting High Speed
  • Voltage Rating: 690 VAC/700 VDC

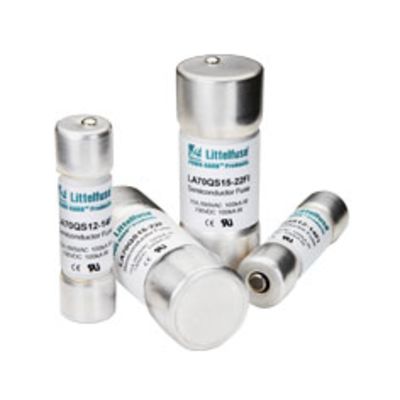

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.
QTY
Add to Wishlist
  • Features
  • Very low I2T improved protection of equipment
  • Superior cycling ability for long, reliable life on high cycling loading
  • Lower watts loss for cooler operation
  • 700 VAC/VDC rating provides greater design versatility
  • Compact sizes allow downsizing of equipment
