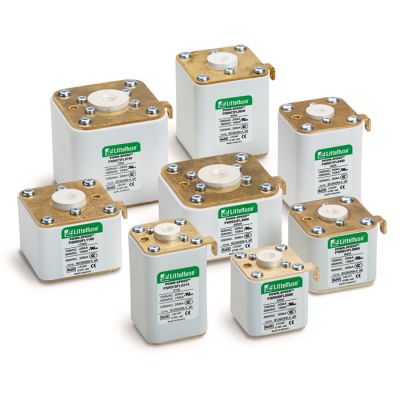

Littelfuse PSR072FL0630

Littelfuse POWR-SPEED PSR072FL0630 High Speed Very Fast Acting Semiconductor Fuse, 630 A, 1250 VAC IEC, 1300 VAC UL, 1000 VDC, 100/150 kA Interrupt, Class: Class aR, Square Body
Semiconductor Fuses
7818372 PSR072FL0630
Littelfuse
$0.00 / ea

Littelfuse PSR072FL0630
  • Amperage Rating: 630
  • Body Size: 2.87 in L x 2.36 in W x 2.36 in H
  • Body Type: Square
  • Class: Class AR
  • Indicating/Non-Indicating: Indicating
  • Interrupt Rating: 100/150
  • Material: Ceramic
  • Mounting Type: Flush End
  • Series: PSR Series
  • terminal type: Flush End Metric Thread
  • Type: High Speed Very Fast Acting
  • Voltage Rating: 1250 VAC IEC, 1300 VAC UL, 1000 VDC
Littelfuse POWR-SPEED Semiconductor Fuse, High Speed Very Fast Acting, Series: PSR Series, Indicating, 630 A, 1250 VAC IEC, 1300 VAC UL, 1000 VDC, 100/150 kA Interrupt, Class: Class aR, Flush End Metric Thread Terminal, Flush End Mounting, Square Body, Ceramic, 2.87 in L x 2.36 in W x 2.36 in H Body
QTY
Add to Wishlist
  • Features
  • Best in class DC performance
  • Extremely current limiting
  • Superior cycling capability
  • Direct bus bar mount design
  • Visual and microswitch fuse blown indication
  • Low watt loss design
  • Class aR performance according to IEC 60269-4
  • 100 kA at 1250 VAC IEC, 1300 VAC UL, 150 kA at 1000 VDC interrupt rating
