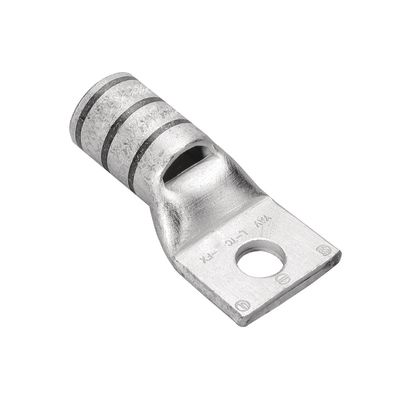

Burndy YAV8CL

BURNDY HYLUG YAV8CL YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 8 AWG Stranded Copper Conductor, Die Code: 38, #8 to #10 Stud, Electro-Tin Plated Copper
Lug Compression Connectors
4353125 YAV8CL
Burndy
$0.00 / ea

Burndy YAV8CL
  • Barrel Size: 0.41 in L
  • Barrel Type: Short
  • Material: Electro-Tin Plated Copper
  • Conductor size: 8
  • Conductor Type: Stranded Copper
  • Die Code: 38
  • Overall Length: 1.08
  • Series: YAV-L
  • Specifications: 1/2 in L Wire Strip
  • Stud Size: #8 to #10
  • Tongue Size: 0.41 in ID
  • Tongue Type: Ring Straight
  • Type: 1-Hole Heavy Duty Uninsulated
  • Voltage Rating: 600 VAC to 35 kV
BURNDY HYLUG Compression Lug, 1-Hole Heavy Duty Uninsulated, Series: YAV-L, Stranded Copper Conductor, 8 AWG Conductor, Die Code: 38, 600 VAC to 35 kV, #8 to #10 Stud, Ring Straight Tongue, 0.41 in ID Tongue, 1.08 in Overall Length, Short Barrel, 0.41 in L Barrel, 1/2 in L Wire Strip, Electro-Tin Plated Copper
QTY
Add to Wishlist
  • Features
  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • For HYtool MY29-11 non-ratchet, Y8MRB-1, MR4C, MR8-9Q, M8ND tool with N8CT die set ratchet, HYPRESS Y29NC, Y29B tool, DV8L-1 die nest, Y29PL die indentor, (1) crimp, Y35, Y39 tool, UV8L die nest, Y35P3 die indentor, (1) crimp, Y750 tool, UV8L die nest, Y34PL die indentor, (1) crimp installation tools
  • Bulk packaging
  • Copper/flex conductor
  • Pure electrolytic tin plated
  • 0.94 in hole center to barrel end, 0.28 in hole center to barrel
