Panduit LCAS2/0-38-X

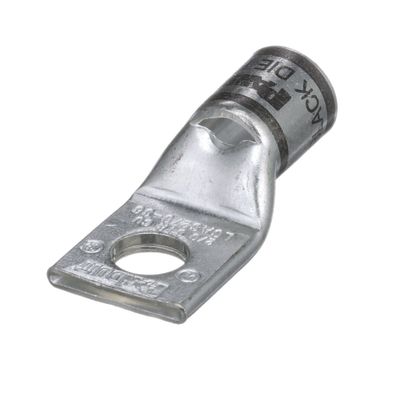

Panduit Pan-Lug LCAS2/0-38-X 1-Hole Compression Lug, 2/0 AWG Copper/Stranded Conductor, Die Code: P45, 3/8 in Stud, Copper
Lug Compression Connectors
187138 LCAS2/0-38-X
Panduit
$0.00 / ea

Panduit LCAS2/0-38-X
  • Barrel Size: 0.45 in ID x 0.58 in OD x 0.72 in L
  • Barrel Type: Short/Inspection Window
  • Color: Black
  • Conductor size: 2/0
  • Conductor Type: Copper/Stranded
  • Die Code: P45
  • Material: Copper
  • Mounting Hole Size: 3/4
  • Overall Length: 1.89
  • Series: LCAS
  • Specifications: 3/4 in L Wire Strip, Tin Plated Finish
  • Stud Size: 3/8
  • Temperature Rating: 90
  • Tongue Size: 0.85 in W x 0.13 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAS, Copper/Stranded Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 1.89 in Overall Length, Short/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.72 in L Barrel, Specifications: 3/4 in L Wire Strip, Tin Plated Finish, 90 deg C, 3/4 in Mounting Hole, Copper, Black
QTY
Add to Wishlist
  • Features
  • Short barrel for limited space applications
  • Color coded bands for proper die selection and crimp placement
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
