Panduit LCC10-14JAWH-L

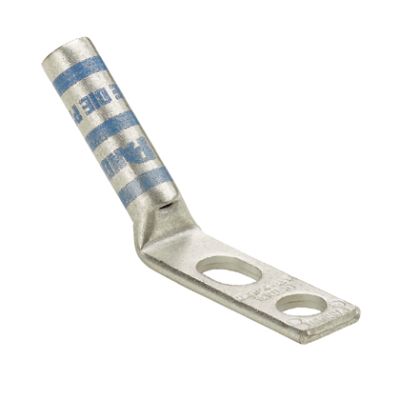

Panduit Pan-Lug LCC10-14JAWH-L LCC-WH 2-Hole Compression Connector Lug, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, 42.826 in Stud, Tin Plated Copper
Lug Compression Connectors
7461330
LCC10-14JAWH-L
Panduit
$0.00
/ ea
- Barrel Size: 0.13 in ID x 0.22 in OD x 0.53 in L
- Barrel Type: Long
- Conductor size: 14 to 10 AWG, 12 to 10 AWG
- Conductor Type: Solid/Stranded Copper
- Material: Tin Plated Copper
- Mounting Hole Size: 42.614
- Overall Length: 1.78
- Series: LCC-WH
- Specifications: 0.5 to 0.63 in Stud Hole Spacing, 9/16 in L Wire Strip
- Stud Size: 42.826
- Temperature Rating: 90
- Tongue Size: 0.42 in W x 0.05 in THK
- Tongue Type: 45
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-WH, Solid/Stranded Copper Conductor, 14 to 10 AWG, 12 to 10 AWG Conductor, 35 kV, 42.826 in Stud, 45 deg Tongue, 0.42 in W x 0.05 in THK Tongue, 1.78 in Overall Length, Long Barrel, 0.13 in ID x 0.22 in OD x 0.53 in L Barrel, 0.5 to 0.63 in Stud Hole Spacing, 9/16 in L Wire Strip, 90 deg C, 42.614 in Mounting Hole, Tin Plated Copper
- Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- 14 to 10 AWG stranded, 12 to 10 AWG solid
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- For use with stranded copper conductors
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
