Panduit LCC8-10AF-L

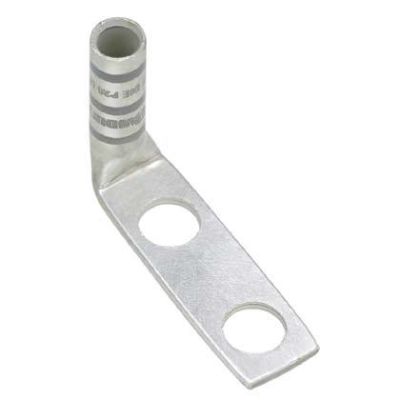

Panduit Pan-Lug LCC8-10AF-L 2-Hole Compression Connector Lug, 8 AWG Flexible/Stranded Copper Conductor, Die Code: P21, 0.19 in Stud, Tin Plated Copper
Lug Compression Connectors
7113927 LCC8-10AF-L
Panduit
$0.00 / ea

Panduit LCC8-10AF-L
  • Barrel Size: 0.18 in ID x 0.27 in OD x 0.7 in L
  • Barrel Type: Long
  • Color: Red
  • Conductor size: 8
  • Conductor Type: Flexible/Stranded Copper
  • Die Code: P21
  • Material: Tin Plated Copper
  • Mounting Hole Size: 42.828
  • Overall Length: 1.53
  • Series: LCC
  • Specifications: 3/4 in L Wire Strip, 5/8 in Stud Hole Spacing
  • Stud Size: 0.19
  • Temperature Rating: 90
  • Tongue Size: 0.41 in W x 0.08 in THK
  • Tongue Type: 90
  • Type: 2-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC, Flexible/Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 0.19 in Stud, 90 deg Tongue, 0.41 in W x 0.08 in THK Tongue, 1.53 in Overall Length, Long Barrel, 0.18 in ID x 0.27 in OD x 0.7 in L Barrel, 3/4 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 42.828 in Mounting Hole, Tin Plated Copper, Red
QTY
Add to Wishlist
  • Features
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • For use with flexible copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Without inspection window
