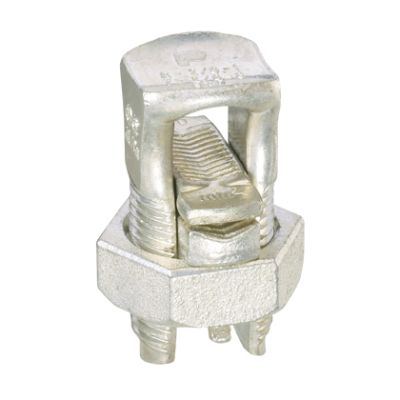

Panduit SBCT8-C

Panduit SBCT8-C Split Bolt Mechanical Connector, 8 to 6 AWG Stranded Aluminum/Copper Conductor, Copper
Lug Mechanical Connectors
7171435 SBCT8-C
Panduit
$0.00 / ea

Panduit SBCT8-C
  • Conductor size: 8 to 6
  • Conductor Type: Stranded Aluminum/Copper
  • Dimensions: 0.16 in ID x 1.06 in L x 0.41 in W
  • Finish: Tin Plated
  • Material: Copper
  • Series: SBCT
  • Specifications: 0.62 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 165 in-lb Tightening Torque
  • Temperature Rating: 90
  • Voltage Rating: 600
Panduit Split Bolt Mechanical Connector, Series: SBCT, Stranded Aluminum/Copper Conductor, 8 to 6 AWG Conductor, 600 VAC, Specifications: 0.62 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 165 in-lb Tightening Torque, 90 deg C, Copper, Tin Plated, 0.16 in ID x 1.06 in L x 0.41 in W
QTY
Add to Wishlist
  • Features
  • Made from high strength copper alloy to provide premium electrical and mechanical performance
  • Tin plated to inhibit corrosion and oxidation
  • Offered with dual rating for use with aluminum or copper conductors
  • Wide wire range taking capability minimizes inventory requirements
  • Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
  • Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
  • Copper to aluminum connection
