Panduit PH10-10F-E

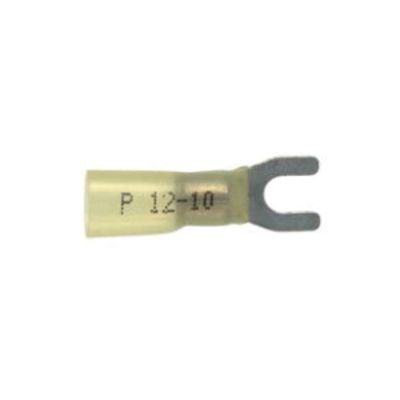

Panduit Pan-Term PH10-10F-E PH-F Heat Shrink Fork Terminal, 12 to 10 AWG Conductor, 1.2 in L, Copper, Yellow
Ring Terminals
6804088
PH10-10F-E
Panduit
$0.00
/ ea
- Barrel Size: 1/4 in L
- Color: Yellow
- Conductor size: 12 to 10
- Conductor Type: Stranded Copper
- Finish: Tin Plated
- Length: 1.2
- Material: Copper
- Series: PH-F
- Specifications: 5/16 in L Wire Strip, 0.24 in Dia Maximum Insulation, Standard Barrel Configuration
- Stud Size: #10
- Temperature Rating: -65 to 230
- Tongue Size: 0.38 in W
- Tongue Type: Fork
- Type: Heat Shrink
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Heat Shrink, Series: PH-F, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.2 in Length, 1/4 in L Barrel, Fork Tongue, 0.38 in W Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.24 in Dia Maximum Insulation, Standard Barrel Configuration, -65 to 230 deg F, Copper, Tin Plated, Yellow
