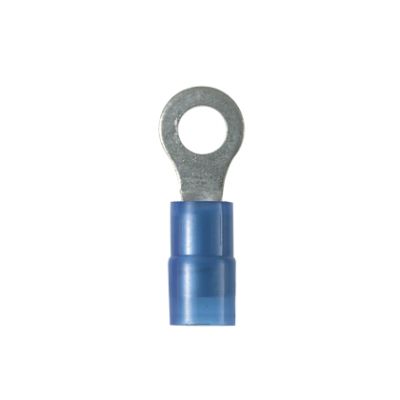

Panduit PN14-10R-E

Panduit Pan-Term PN14-10R-E Type PN-R Terminal With Nylon Insulation, 18 to 14 AWG Conductor, 0.85 in L, Seamed/Standard Barrel, Copper, Blue
Ring Terminals
7669067 PN14-10R-E
Panduit
$0.00 / ea

Panduit PN14-10R-E
  • Barrel Type: Seamed/Standard
  • Color: Blue
  • Conductor size: 18 to 14
  • Conductor Type: Solid/Stranded
  • Finish: Tin Plated
  • Length: 0.85
  • Material: Copper
  • Specifications: 0.21 in L Wire Strip, Non-Expanded
  • Stud Size: #10
  • Temperature Rating: 221
  • Tongue Size: 0.31 in W x 0.03 in THK
  • Tongue Type: Ring
  • Type: Type PN-R
  • Voltage Rating: 600
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #10 Stud, 0.85 in Length, Seamed/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.21 in L Wire Strip, Non-Expanded, 221 deg F, Copper, Tin Plated, Blue
QTY
Add to Wishlist
  • Features
  • Ring tongue design assures a secure connection in high vibration applications
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
