Panduit PN14-6FF-C

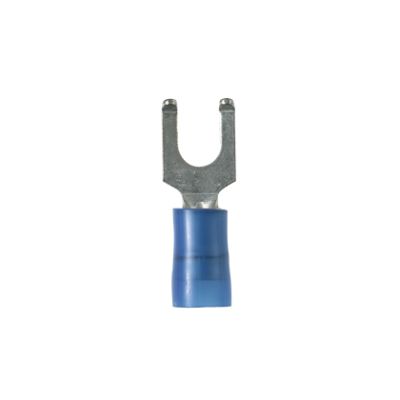

Panduit Pan-Term PN14-6FF-C Loose Piece Fork Terminal, #14 Conductor, 0.79 in L, Funnel Entry/Sleeved Barrel, Copper, Blue
Ring Terminals
6945708
PN14-6FF-C
Panduit
$0.00
/ ea
- Barrel Type: Funnel Entry/Sleeved
- Color: Blue
- Conductor size: #14
- Conductor Type: Copper Stranded
- Finish: Tin Plated
- Length: 0.79
- Material: Copper
- Series: PN-FF
- Specifications: 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 0.2 in Clearance, Fork Shape Enclosure
- Stud Size: #6
- Temperature Rating: 221
- Tongue Size: 0.28 in W x 0.03 in THK
- Tongue Type: Flanged
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-FF, Copper Stranded Conductor, #14 Conductor, #6 Stud, 0.79 in Length, Funnel Entry/Sleeved Barrel, Flanged Tongue, 0.28 in W x 0.03 in THK Tongue, 600 V, Specifications: 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 0.2 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Flange design provides extra secure connection on a variety of applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Non-expanded insulation
