Panduit PN18-10FF-C

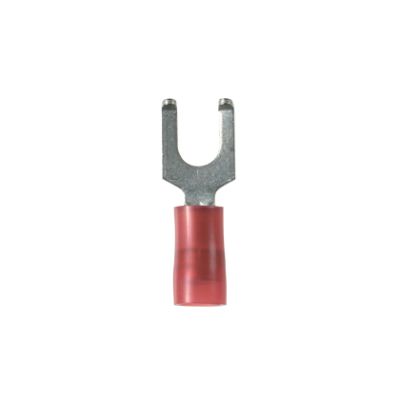

Panduit PN18-10FF-C Type PN-FF Loose Piece Fork Terminal, 22 to 16 AWG Conductor, 0.86 in L, Sleeve/Standard/Internal Serration Barrel, Copper, Red
Ring Terminals
617418 PN18-10FF-C
Panduit
$0.00 / ea

Panduit PN18-10FF-C
  • Barrel Type: Sleeve/Standard/Internal Serration
  • Color: Red
  • Conductor size: 22 to 16
  • Conductor Type: Stranded Copper
  • Finish: Tin Plated
  • Length: 0.86
  • Material: Copper
  • Specifications: 0.08 to 0.136 in Dia Nylon Insulation, 0.22 in Mounting Hole Size, 0.23 in Clearance, 7/32 in L Wire Strip, Fork Shape Enclosure
  • Stud Size: #10
  • Temperature Rating: 221
  • Tongue Size: 0.35 in W x 0.03 in THK
  • Tongue Type: Flanged Fork
  • Type: Type PN-FF Loose Piece
  • Voltage Rating: 600
Panduit Fork Terminal, Type PN-FF Loose Piece, Stranded Copper Conductor, 22 to 16 AWG Conductor, #10 Stud, 0.86 in Length, Internal Serration/Sleeve/Standard Barrel, Flanged Fork Tongue, 0.35 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.08 to 0.136 in Dia Nylon Insulation, 0.22 in Mounting Hole Size, 0.23 in Clearance, 7/32 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
