Panduit PV10-14F-D

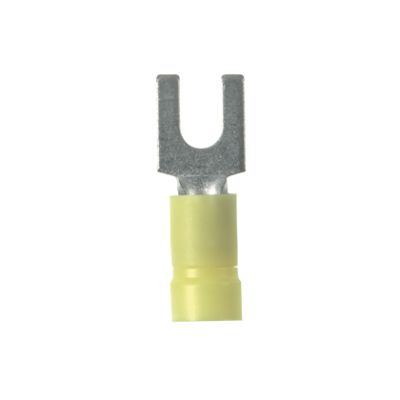

Panduit Pan-Term PV10-14F-D Loose Piece Fork Terminal, #10 Conductor, 1.14 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow
Ring Terminals
29289
PV10-14F-D
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Funnel Entry
- Color: Yellow
- Conductor size: #10
- Conductor Type: Copper Stranded
- Finish: Tin Plated
- Length: 1.14
- Material: Copper
- Series: PV-F
- Specifications: 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.32 in Clearance, Fork Shape Enclosure
- Stud Size: 1/4
- Temperature Rating: 221
- Tongue Size: 0.49 in W x 0.04 in THK
- Tongue Type: Fork
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-F, Copper Stranded Conductor, #10 Conductor, 1/4 in Stud, 1.14 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.49 in W x 0.04 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.32 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Locks in place for secure connection
- Flange design provides extra secure connection on a variety of applications
