Panduit PV14-8FF-C

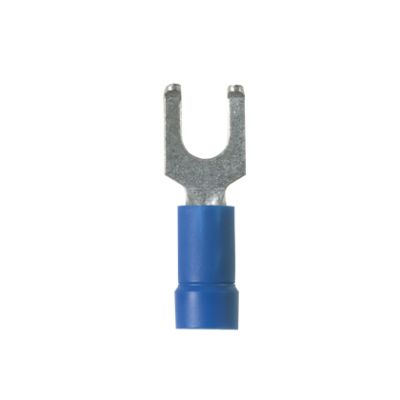

Panduit Pan-Term PV14-8FF-C Insulated Fork Terminal, #14 Conductor, 0.94 in L, Brazed Seam/Funnel Entry Barrel, Copper, Blue
Ring Terminals
371653 PV14-8FF-C
Panduit
$0.00 / ea

Panduit PV14-8FF-C
  • Barrel Type: Brazed Seam/Funnel Entry
  • Color: Blue
  • Conductor size: #14
  • Conductor Type: Copper Stranded
  • Finish: Tin Plated
  • Length: 0.94
  • Material: Copper
  • Series: PV-FF
  • Specifications: 5/16 in L Wire Strip, 0.165 in Dia Vinyl Insulation, 0.23 in Clearance, Fork Shape Enclosure
  • Stud Size: #8
  • Temperature Rating: 221
  • Tongue Size: 0.31 in W x 0.032 in THK
  • Tongue Type: Flanged
  • Type: Insulated
  • Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Insulated, Series: PV-FF, Copper Stranded Conductor, #14 Conductor, #8 Stud, 0.94 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Tongue, 0.31 in W x 0.032 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.165 in Dia Vinyl Insulation, 0.23 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
QTY
Add to Wishlist
  • Features
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Locks in place for secure connection
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
