Panduit PV18-10R-E

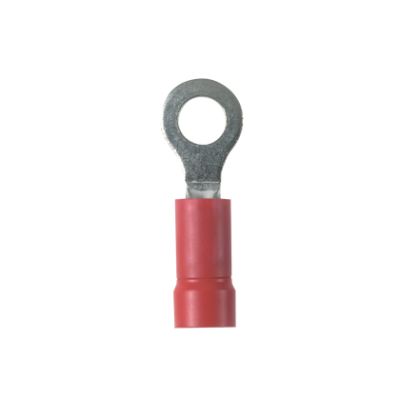

Panduit Pan-Term PV18-10R-E Type PV-R Terminal With Vinyl Insulation, 22 to 18 AWG Conductor, 0.94 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Red
Ring Terminals
7689022 PV18-10R-E
Panduit
$0.00 / ea

Panduit PV18-10R-E
  • Barrel Type: Brazed Seam/Funnel Entry/Insulation Support
  • Color: Red
  • Conductor size: 22 to 18
  • Conductor Type: Solid/Stranded
  • Finish: Tin Plated
  • Length: 0.94
  • Material: Copper
  • Stud Size: #10
  • Temperature Rating: 221
  • Tongue Size: 0.31 in W x 0.8 in THK
  • Tongue Type: Ring
  • Type: Type PV-R
  • Voltage Rating: 600
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.94 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.8 in THK Tongue, 600 VAC, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • Ring tongue design assures a secure connection in high vibration applications
  • Insulation support helps to prevent wire damage in bending applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
