Panduit PV2-14R-XY

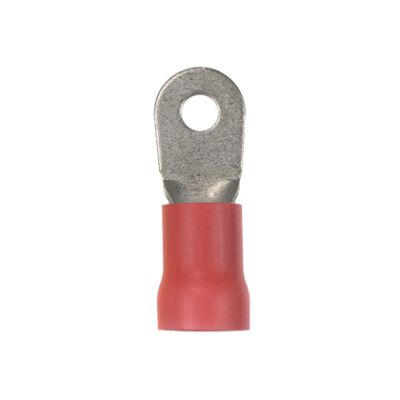

Panduit Pan-Term PV2-14R-XY Loose Piece Ring Terminal, 2 AWG Conductor, 1.96 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
Ring Terminals
6798704
PV2-14R-XY
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Funnel Entry/Internal Serration
- Color: Red
- Conductor size: 2
- Conductor Type: Stranded
- Finish: Tin Plated
- Length: 1.96
- Material: Copper
- Series: PV-R
- Specifications: 1/2 in L Wire Strip, 0.58 in Clearance, 0.56 in Dia Vinyl Insulation, 1/2 in Mounting Hole, Ring Shape Enclosure
- Stud Size: 1/4
- Temperature Rating: 221
- Tongue Size: 0.68 in W x 0.06 in THK
- Tongue Type: Ring
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-R, Stranded Conductor, 2 AWG Conductor, 1/4 in Stud, 1.96 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 600 V, Specifications: 1/2 in L Wire Strip, 0.58 in Clearance, 0.56 in Dia Vinyl Insulation, 1/2 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
- Features
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V-groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Brazed seam provides stronger more durable termination
- Multi-finger insulation grip - provides superior insulation holding characteristics, especially on EPR and other elastic type insulations
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Pure electrolytic tin plated copper
- Color-coded and clearly marked provides quick, easy wire size identification
- Ring tongue provides a secure termination under the screw head that can not be removed without complete removal of the screw
- Two or more terminals may be stacked on a common stud easily provides flexibility and versatility
