Panduit PV8-14RX-TY

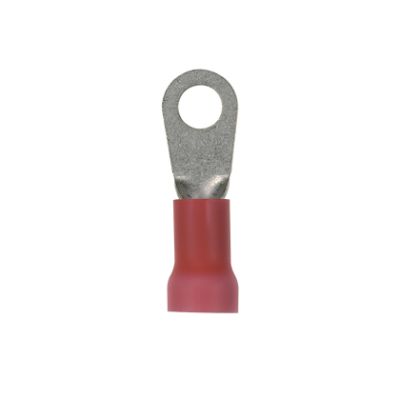

Panduit Pan-Term PV8-14RX-TY Loose Piece Ring Terminal, 8 AWG Conductor, 1.52 in L, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Copper, Red
Ring Terminals
6798719 PV8-14RX-TY
Panduit
$0.00 / ea

Panduit PV8-14RX-TY
  • Barrel Type: Brazed Seam/Expanded Entry/Insulation Support/Internal Serration
  • Color: Red
  • Conductor size: 8
  • Conductor Type: Stranded
  • Finish: Tin Plated
  • Length: 1.52
  • Material: Copper
  • Series: PV-RX
  • Specifications: 3/8 in L Wire Strip, 0.43 in Clearance, 0.36 in Dia Vinyl Insulation, 0.38 in Mounting Hole, Ring Shape Enclosure
  • Stud Size: 1/4
  • Temperature Rating: 221
  • Tongue Size: 0.47 in W x 0.04 in THK
  • Tongue Type: Ring
  • Type: Loose Piece
  • Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-RX, Stranded Conductor, 8 AWG Conductor, 1/4 in Stud, 1.52 in Length, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 600 V, Specifications: 3/8 in L Wire Strip, 0.43 in Clearance, 0.36 in Dia Vinyl Insulation, 0.38 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V-groove
  • Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
  • The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
  • Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
  • Multi-finger insulation grip - provides superior insulation holding characteristics
  • Brazed seam provides stronger more durable termination
  • Especially on EPR and other elastic type insulations
  • Smooth funnel entry provides easy wire insertion
  • Deep V groove, inner barrel serrations - provide optimum conductivity, reliability and holding power
