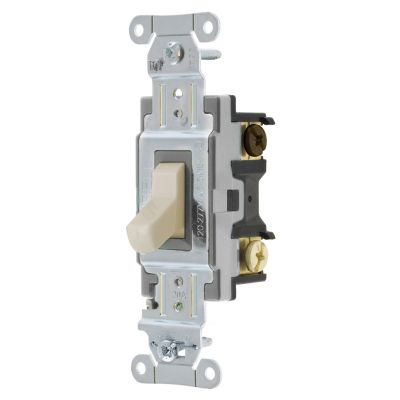

Hubbell Wiring CSB320LA
Wiring Device-Kellems CSB320LA 3-Way 2-Position Specification/Commercial Grade Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
General Purpose Switches
7223310
CSB320LA
Hubbell Wiring
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 20
- Color: Light Almond
- Contact Configuration: 2-Position
- Dimensions: 4.18 x 1.49 x 1.83
- Environmental Conditions: -40 to 75
- Material: Nylon
- Mounting: Threaded
- Number of Poles: 1
- Operating Cycles: 50000
- Power Rating: 5540
- terminal type: Back/Side Wire
- Type: 3-Way 2-Position Specification/Commercial Grade Standard
- Voltage Rating: 120 to 277
Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Back and Side Wired
- Features
- Engineered thermoplastic housing is impact resistant for heavy duty commercial environments
- Stainless steel automatic grounding staple assures grounding continuity between mounting strap and metal wall box
- One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
- Steel zinc plated mounting strap provides protection against corrosion
- Thread cleaning captive mounting screw
- Prominent amperage marking on mounting strap allows easy identification of rating
- Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
- Large brass binding head screws with deep slots secure wire connections
- Strip gauge for accurate wiring
- Heavy duty nylon toggle resists abuse and chemical attack making it suitable for use in the toughest environments
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- Copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Silver alloy contacts reduce contact erosion and prevent welding, providing long life
