Legrand CSB20AC1GRY

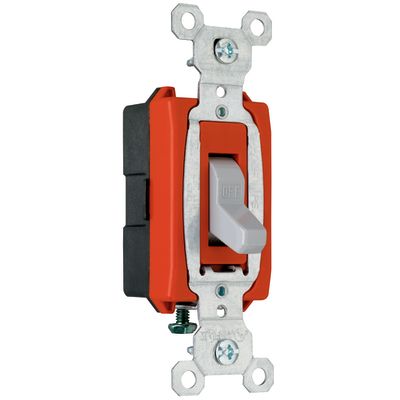

Pass & Seymour CSB20AC1-GRY Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 1/2, 2 hp Power Rating
General Purpose Switches
4868981
CSB20AC1GRY
Legrand
$0.00
/ ea
- Actuator: Cam/Spring/Toggle
- Amperage Rating: 20
- Color: Gray
- Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
- Environmental Conditions: -40 to 115 deg C Temperature
- Material: Nylon
- Mounting: Wall
- Number of Poles: 1
- Operating Cycles: 50000
- Power Rating: 1/2, 2
- terminal type: Screw
- Type: Heavy Duty
- Voltage Rating: 120/277
Construction 1pole Switch, Back and, Side Wire, 20amp 120/277volt, Gray.
- Features
- 1-piece plated steel strap for corrosion-resistance
- Heavy duty bumpers for quiet, smooth operation
- Oversized silver alloy contacts for long life and better heat dissipation
- Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
- Shallow design for ease of installation
- Glass reinforced nylon back body for durability and strength
- Cam control and spring actuator for positive makes and breaks with a minimum of arcing
- Locking support provides resistance to face and back body separation
- Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
- Glass reinforced nylon back body, nylon front body
- 1/2 hp at 120 VAC, 2 hp at 240 VAC, 2 hp at 277 VAC power rating
- Back and side wire connection
