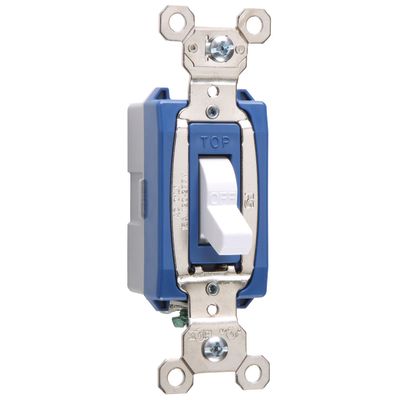

Legrand PS15AC1W
Pass & Seymour PS15AC1W Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, 1 W Power Rating
General Purpose Switches
4869746
PS15AC1W
Legrand
$0.00
/ ea
- Actuator: Cam/Spring/Toggle
- Amperage Rating: 15
- Color: White
- Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
- Environmental Conditions: -40 to 115 deg C Temperature
- Material: Thermoplastic
- Mounting: Wall
- Number of Poles: 1
- Operating Cycles: 50000
- Power Rating: 1/2 hp, 2 hp, 1 W
- terminal type: Screw
- Type: Heavy Duty
- Voltage Rating: 120/277
1pole Toggle Switch, Back and, Side Wire, 15amp 120/277volt, White
- Features
- 1-piece plated steel strap for corrosion-resistance
- Heavy duty bumpers for quiet, smooth operation
- Oversized silver alloy contacts for long life and better heat dissipation
- Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
- Shallow design for ease of installation
- Glass reinforced nylon back body for durability and strength
- Cam control and spring actuator for positive makes and breaks with a minimum of arcing
- Locking support provides resistance to face and back body separation
- Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
- Bare insulation
- Industrial EHD specification grade
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
- Back and side wire connection
- High strength toggle
