Legrand PS15AC2GRY

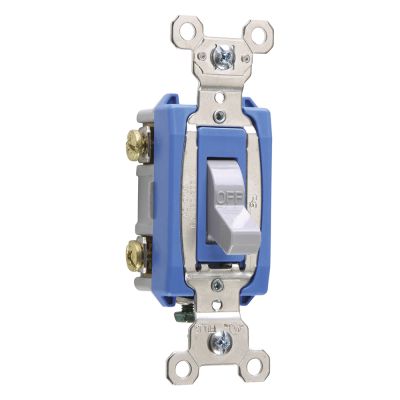

Pass & Seymour PS15AC2-GRY Extra Heavy Duty Toggle Industrial Grade Paddle Switch, 15 A at 120/127 VAC, DPDT Contact, 2 Poles
General Purpose Switches
7000969
PS15AC2GRY
Legrand
$0.00
/ ea
- Actuator: Paddle
- Color: Gray
- Connection: Back/Side Wired
- Contact Configuration: DPDT
- Dimensions: 4.6 in H x 2.5 in W x 2.4 in D
- Electrical Ratings: 15 A at 120/127 VAC
- Material: Thermoplastic
- Mounting: Wall
- Number of Poles: 2
- terminal type: Bare
- Type: Extra Heavy Duty Toggle Industrial Grade
2pole Toggle Switch, Back and, Side Wire, 15amp 120/277volt, Gray
- Features
- External screw pressure plate back and side wired, accepts 14 to 10 AWG copper or copper clad conductors
- Heavy gauge 1-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast make and positive break to minimize arcing
- Heavy duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
- Strap nickel plated steel with integral ground
- Auto-ground clip assures positive ground
- Industrial grade
- Thermoplastic toggle
