Legrand PS20AC2CPL

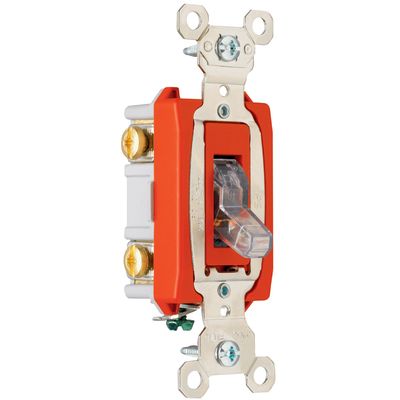

Pass & Seymour PS20AC2CPL Heavy Duty Specification Grade Pilot Light Switch, 120/277 VAC, 20 A, 1/2 hp, 2 W Power Rating
General Purpose Switches
7111037
PS20AC2CPL
Legrand
$0.00
/ ea
- Actuator: Cam/Spring/Toggle
- Amperage Rating: 20
- Color: Clear
- Connection: Back/Side Wired/Screw
- Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
- Environmental Conditions: -40 to 115 deg C Operating Temperature
- Material: Thermoplastic
- Mounting: Wall
- Number of Poles: 2
- Operating Cycles: 50000
- Power Rating: 1/2 hp, 2 W
- Type: Heavy Duty Specification Grade
- Voltage Rating: 120/277
2pole Pilot Lighted Switch, Back and, Side Wire, 20amp 120/277volt, Clear
- Features
- 1-piece plated steel strap for corrosion-resistance
- Heavy duty bumpers for quiet, smooth operation
- Oversized silver alloy contacts for long life and better heat dissipation
- Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
- Shallow design for ease of installation
- Glass reinforced nylon back body for durability and strength
- Cam control and spring actuator for positive makes and breaks with a minimum of arcing
- Locking support provides resistance to face and back body separation
- Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
- Bare insulation
- Industrial EHD specification grade
- Pilot lighted switch
- 1 hp at 120 VAC, 2 hp at 240 VAC power rating
- High strength toggle
