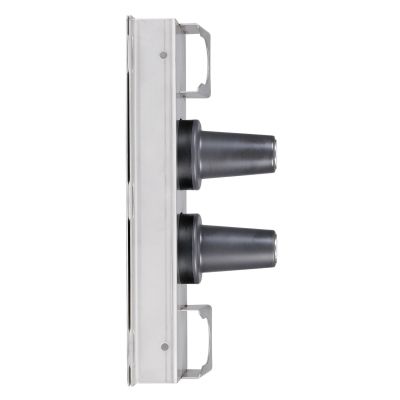

ABB Installation Products K650-J2
Elastimold K650-J2 600 2-Point Deadbreak Junction With Stainless Steel Mounting Plate and Backplate, 15/25 kVAC, 600 A, Panel Mount, Push-In Connection, EPDM Rubber
Plugs Connectors
7299724
K650-J2
ABB Installation Products
$0.00
/ ea
- Amperage Rating: 600
- Connection Type: Push-In
- Dimensions: 15 in L x 6.75 in W x 5.87 in H
- Material: EPDM Rubber
- Mounting Type: Panel
- Series: 600
- Specifications: 4 in Center to Center
- Suitable For Use With: Cable and Network Circuit
- Type: 2-Point
- Voltage Rating: 15/25
15/25kV 600 Series Deadbreak 2-Point Junction
- Features
- 6 mounting holes
- Designs incorporate lightweight, damage resistant, EPDM molded rubber construction and corrosion resistant 304 stainless steel mounting brackets
- Junctions are maintenance free, fully shielded, dead front and submersible
- Elastimold® multi-point junctions provide a convenient method for connecting, looping and tapping of 200 and 600 A elbows and other accessories at a common location where utilization of space, cable training, flexibility and operability are important
- Elastimold® multi-point junctions feature modular design flexibility that permits the specifier to determine the positions of the bushing interfaces and bushing well positions
