Eaton NPJ3484

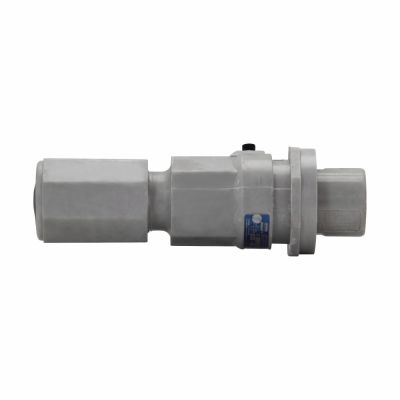

Crouse-Hinds Arktite NPJ3484 Grounding Style 2 Heavy Duty Watertight Mating Plug, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires, Gray
Plugs Connectors
60534 NPJ3484
Eaton
$0.00 / ea

Eaton NPJ3484
  • Amperage Rating: 30
  • Color: Gray
  • Dimensions: 14-3/8 in Dia x 24 in L
  • Frequency Rating: 50 to 400
  • Material: Krydon® Fiberglass Reinforced Polyester
  • Nema Rating: NEMA 4X
  • Number of Poles: 4
  • Number Of Wires: 3
  • Series: NPJ
  • terminal type: Crimp/Solder
  • Type: Grounding Style 2 Heavy Duty Watertight
  • Voltage Rating: 600 VAC/250 VDC
Eaton Crouse-Hinds series Arktite NPJ plug, 30A, Three-wire, four-pole, 0.70-0.85", 50-400 Hz, Style 2, Krydon fiberglass-reinforced polyester, 600 Vac/250 Vdc
QTY
Add to Wishlist
  • Features
  • Grounding style two through extra pole and shell
  • Molded of Krydon® fiberglass-reinforced non-metallic material which is highly resistant to corrosion, heat, weathering and physical abuse
  • Grounding contacts that make first and break last in the unlikely event of a keyway failure
  • Split pin contact design provides 360 deg of electrical contact
  • Spring door provides environmental protection of receptacle (NEMA 4)
  • Keyed for a perfect match in the molded one piece insulator housing
  • Sealing gaskets at all critical points inside Arktite® plugs and receptacles protect against dust, dirt, mud, water and corrosive contaminants
  • Total interchangeability with all existing Arktite® products for comparable ratings and configurations
  • Unique patented strain relief design prevents stress from reaching wire terminations at the contacts
