Eaton NPJ6485

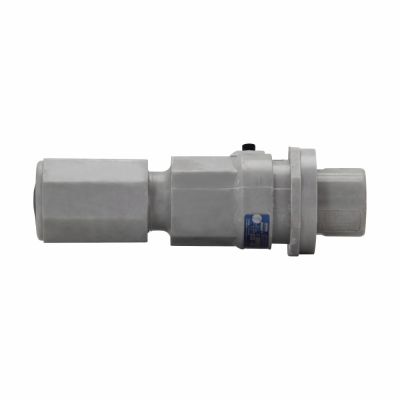

Crouse-Hinds Arktite NPJ6485 Grounding Style 2 Heavy Duty Watertight Mating Plug, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires, Gray
Plugs Connectors
60577 NPJ6485
Eaton
$0.00 / ea

Eaton NPJ6485
  • Amperage Rating: 60
  • Color: Gray
  • Dimensions: 14-3/8 in Dia x 24-1/2 in L
  • Frequency Rating: 50 to 400
  • Grade: Industrial
  • Material: Krydon® Fiberglass Reinforced Polyester
  • Nema Rating: NEMA 3/3R/4/12/4X
  • Number of Poles: 4
  • Number Of Wires: 3
  • Series: NPJ
  • Type: Grounding Style 2 Heavy Duty Watertight
  • Voltage Rating: 600 VAC/250 VDC
Eaton Crouse-Hinds series Arktite NPJ plug, 60A, Three-wire, four-pole, 1.07-1.35", 50-400 Hz, Style 2, Krydon fiberglass-reinforced polyester, 600 Vac/250 Vdc
QTY
Add to Wishlist
  • Features
  • Grounding style two through extra pole and shell
  • Plugs are molded of Krydon® fiberglass-reinforced polyester material which is highly resistant to corrosion, heat, weathering and physical abuse
  • Grounding contacts that make first and break last in the unlikely event of a keyway failure
  • Split pin contact design provides 360 deg of electrical contact
  • Spring door provides environmental protection of receptacle (NEMA 4)
  • Keyed for a perfect match in the molded one piece insulator housing
  • Sealing gaskets at all critical points inside Arktite® plugs and receptacles protect against dust, dirt, mud, water and corrosive contaminants
  • Plugs can be used in both hazardous and non-hazardous areas when used with appropriately rated Arktite® receptacles
  • Total interchangeability with all existing Arktite® products for comparable ratings and configurations
  • A unique patented strain relief design prevents stress from reaching wire terminations at the contacts
  • 1.07 to 1.35 in Dia cord
  • 6 to 4 AWG building, 8 to 4 AWG extra flex wire
