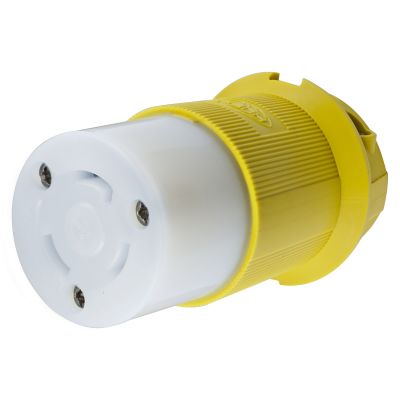

Hubbell Wiring HBL26CM13

Wiring Device-Kellems Twist-Lock Insulgrip HBL26CM13 Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant Female Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
570306 HBL26CM13
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL26CM13
  • Amperage Rating: 30
  • Color: Yellow
  • Cord Diameter: 0.36 to 0.93
  • Dimensions: 2.26 x 2.26 x 3.86
  • Enclosure: IP20
  • Grade: Industrial/Marine
  • Horsepower: 2
  • Material: Nylon
  • Nema Rating: L5-30R/WD1/WD5
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant
  • Voltage Rating: 125
Wiring Device-Kellems, HBL26CM13, Female Connector, Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L5-30R/WD1/WD5 NEMA Rating, Industrial/Marine Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 2.26 x 2.26 x 3.86 in Dimensions
QTY
Add to Wishlist
  • Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion resistant
