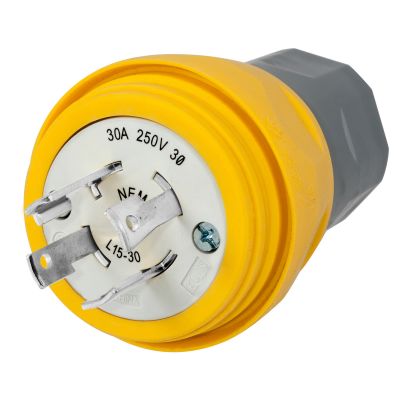

Hubbell Wiring HBL28W75
Wiring Device-Kellems Twist-Lock HBL28W75 3-Phase Grounding Cord Mount Watertight Locking Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Plugs Connectors
7477056
HBL28W75
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 3/8 to 1
- Dimensions: 2.77 x 2.77 x 3.94
- Grade: Commercial/Industrial
- Horsepower: 3
- Material: Elastomer/Composite
- Nema Rating: L15-30P
- Number of Poles: 3
- Number Of Wires: 4
- Temperature Rating: -40 to 60
- terminal type: Screw
- Type: 3-Phase Grounding Cord Mount Watertight
- Voltage Rating: 250
Wiring Device-Kellems Twist-Lock Locking Plug, 3-Phase Grounding Cord Mount Watertight, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30P NEMA Rating, Commercial/Industrial Grade, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.77 x 2.77 x 3.94 in
- Features
- Withstands 2000 VAC dielectric voltage
- 12 to 10 AWG wire
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Nickel plated brass blade
- White nylon blade holder
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion resistant connection points
