Woodhead 1534

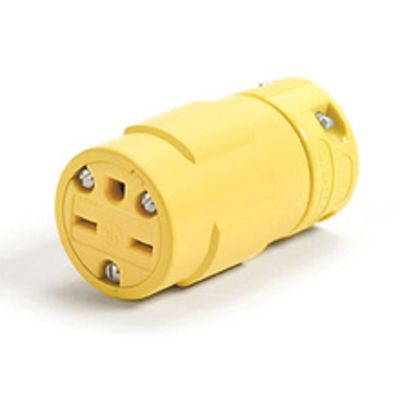

Woodhead reg; Super-Safeway reg; 1534 130141 Female Heavy Duty Locking Connector, 277 VAC, 50 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
240058
1534
Woodhead
$0.00
/ ea
- Amperage Rating: 50
- Color: Yellow
- Cord Diameter: 0.335 to 0.64
- Dimensions: 1.53 in Dia x 2.27 in L
- Enclosure: IP67
- Grade: Industrial
- Material: Rubber
- Nema Rating: NEMA 7-15
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130141
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Heavy Duty
- Voltage Rating: 277
Woodhead® Super-Safeway® Locking Connector, Female Heavy Duty, Series: 130141, 277 VAC, 50 A, 2 Pole, 3 Wires, NEMA 7-15 Rating, Industrial Grade, IP67 Enclosure, 0.335 to 0.64 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow, 1.53 in Dia x 2.27 in L Dimensions
- Features
- NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- Steel, zinc plated cord clamp screw
- NEoTEX® Paracril OZO rubber Super-Safeway® outer housing
