Woodhead 2808

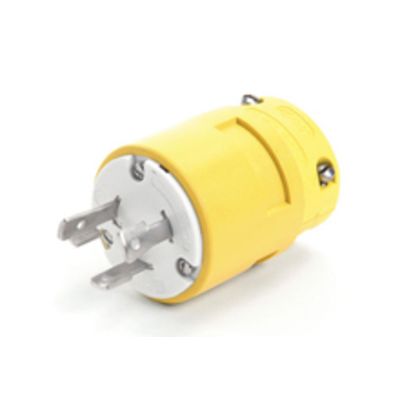

Woodhead reg; 2808 130142 Male Locking Plug With Locking Blade, 250 VAC, 30 A, 3 Poles, 3 Wires, Yellow
Plugs Connectors
38796
2808
Woodhead
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 0.325 to 0.84
- Grade: Industrial
- Material: Rubber
- Number of Poles: 3
- Number Of Wires: 3
- Series: 130142
- Temperature Rating: -40 to 75
- terminal type: Screw/Wire
- Type: Male
- Voltage Rating: 250
Woodhead® Locking Plug, Male, Series: 130142, 250 VAC, 30 A, 3 Pole, 3 Wires, Industrial Grade, 0.325 to 0.84 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
- Features
- NEoTEX® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® paracril OZO rubber Super-Safeway® outer housing
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Zinc-plated steel cord clamp screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Non-NEMA configuration
