Woodhead 28W48

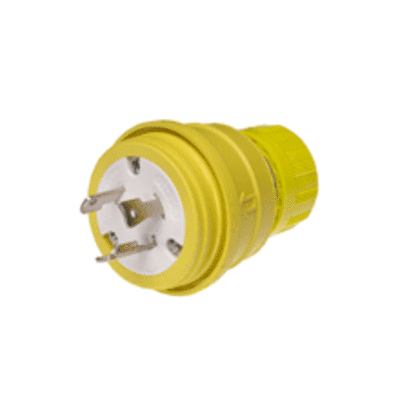

Woodhead reg; Watertite reg; 28W48 130147 Male Connection Extra Hard Locking Plug With Locking Blade, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
38763
28W48
Woodhead
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 1
- Enclosure: IP67
- Material: Rubber
- Nema Rating: NEMA L6-30
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw/Wire
- Type: Male Connection Extra Hard
- Voltage Rating: 250
Woodhead® Watertite® Locking Plug, Male Connection Extra Hard, Series: 130147, 250 VAC, 30 A, 2 Pole, 3 Wires, NEMA L6-30 Rating, IP67 Enclosure, 1 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
- Features
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws pre set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® Paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- F4 body 1 in cord grip
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Lexan receptacle coverplate and closure caps
- Recommended for outdoor application
