Woodhead 2982

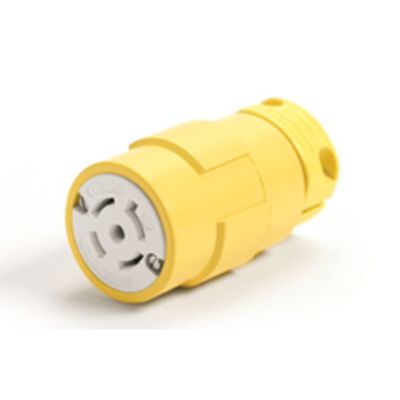

Woodhead reg; 2982 130142 Female Connector With Locking Blade, 480 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
7338357
2982
Woodhead
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Grade: Industrial
- Material: Rubber
- Nema Rating: NEMA L22-30
- Number of Poles: 4
- Number Of Wires: 5
- Series: 130142
- Temperature Rating: -40 to 75
- Voltage Rating: 480
Woodhead® Female Connector, Series: 130142, 480 VAC, 30 A, 4 Pole, 5 Wires, NEMA L22-30 NEMA Rating, Industrial Grade, -40 to 75 deg C, Rubber, Yellow
- Features
- Neotex® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two piece strain relief seals cord without damaging the cord
- Single receptacle
- Stainless steel face screws
- Brass wire saddle clamp
- 0.425 to 1.15 in connector
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
