Eaton E1016-1701

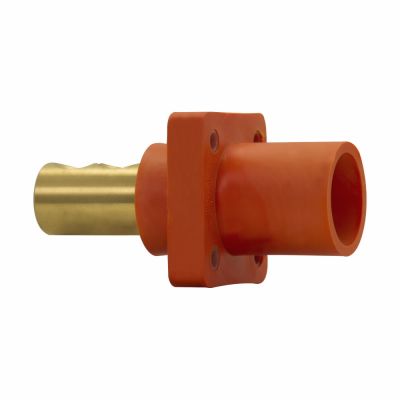

EATON Crouse-Hinds Cam-Lok™ E1016-1701 J Series 1-Pole Insulated Male Receptacle, 600 VAC/VDC, 400 A
Receptacles
7190269
E1016-1701
Eaton
$0.00
/ ea
- Amperage Rating: 400
- Dimensions: 4-1/4 in L x 2-1/4 in W x 2-1/4 in H
- Housing Material: TPE
- Mounting Type: Panel
- Series: J Series E1016
- Type: 1-Pole Insulated
- Voltage Rating: 600
Eaton Crouse-Hinds series Cam-Lok J Series E1016 insulated receptacle, Up to 400A continuous, 1/0-4/0 AWG, Yellow, Double set screw, Male, Thermoplastic elastomer (TPE), 600 Vac/dc
- Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
