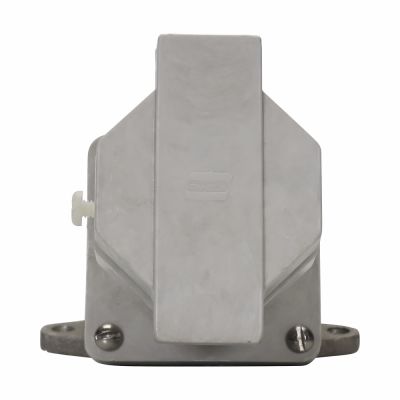

Eaton NRE6424

Crouse-Hinds Arktite NRE6424 Heavy Duty Watertight Circuit Breaking Receptacle Assembly, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires, Gray
Receptacles
7480700 NRE6424
Eaton
$0.00 / ea

Eaton NRE6424
  • Amperage Rating: 60
  • Color: Gray
  • Dimensions: 10-3/8 in L x 6-1/8 in W
  • Frequency Rating: 50 to 400
  • Horsepower: 50
  • Hub Size: 1-1/4
  • Material: Krydon® Fiberglass Reinforced Polyester
  • Nema Rating: NEMA 4X
  • Number of Poles: 4
  • Number Of Wires: 3
  • Series: NRE
  • Type: Heavy Duty Watertight
  • Voltage Rating: 600 VAC/250 VDC
Eaton Crouse-Hinds series Arktite NRE receptacle assembly, 60A, Three-wire, four-pole, 50-400 Hz, Style 2, Krydon fiberglass-reinforced polyester, Snap-on cap/spring door, 1-1/4", 600 Vac/250 Vdc
QTY
Add to Wishlist
  • Features
  • Molded of Krydon® fiberglass-reinforced non-metallic material which is highly resistant to corrosion, heat, weathering and physical abuse
  • Grounding contacts that make first and break last in the unlikely event of a keyway failure
  • Split pin contact design provides 360 deg of electrical contact
  • Spring door provides environmental protection of receptacle (NEMA 4)
  • Keyed for a perfect match in the molded one piece insulator housing
  • Sealing gaskets at all critical points inside Arktite® plugs and receptacles protect against dust, dirt, mud, water and corrosive contaminants
  • Plugs can be used in both hazardous and non-hazardous areas when used with appropriately rated Arktite® receptacles
  • Total interchangeability with all existing Arktite® products for comparable ratings and configurations
  • A unique patented strain relief design prevents stress from reaching wire terminations at the contacts
  • Used where electrical loads must be quickly disconnected from power sources
  • Used in areas where severe corrosion hose down, moisture, dirt and dust are problems
  • Used indoors and outdoors in non-hazardous areas of chemical plants, sewage treatment facilities, cement plants, pulp and paper plants, food processing plants and other similar industries
  • watertight
  • Corrosion resistant
  • Snap-on cap or spring door
  • Fiberglass reinforced polyester insulation
