Hubbell Wiring GFRST20SNAPW

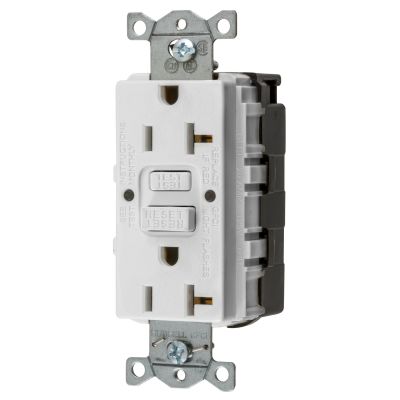

Wiring Device-Kellems SNAPConnect GFRST20SNAPW 1-Phase Duplex Insulated Self-Test Standard Screw Mount GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
7457318
GFRST20SNAPW
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 3.28 x 1.77 x 1.47
- Frequency Rating: 60
- Grade: Commercial
- Horsepower: 1
- Material: Nylon
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Pre-Wire Connector
- Type: 1-Phase Duplex Insulated Self-Test Standard Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems SNAPConnect GFCI Receptacle, 1-Phase Duplex Insulated Self-Test Standard Screw Mount, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial Grade, -40 to 75 deg C, Pre-Wire Connector Terminal, Nylon, White, 3.28 x 1.77 x 1.47 in
- Features
- Audible SNAP, indicates solid connection
- Compliant with NEC 406.12 and NEC 517-18
- Patented AUTOGUARD® self-test technology
- Triple wipe contacts
- Nylon base, brass power/ground contacts, zinc plated steel mounting strap/screws
