Hubbell Wiring HBL4713

Wiring Device-Kellems Twist-Lock HBL4713 1-Phase Grounding Standard Single Panel Mount Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Receptacles
1555130 HBL4713
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL4713
  • Amperage Rating: 15
  • Color: Black
  • Dimensions: 1.75 x 1.42 x 1.27
  • Enclosure: NEMA 4X/12/IP20
  • Grade: Industrial
  • Horsepower: 1/2
  • Material: Thermoplastic
  • Nema Rating: L5-15R/WD1/WD5
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Grounding Standard Single Panel Mount
  • Voltage Rating: 125

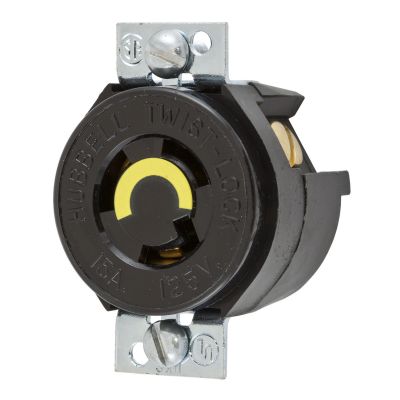

Twist-LockпїЅ Industrial Single Panel Mount Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal Nylon, Side Wired, 1.75" or 1.937" Mounting
QTY
Add to Wishlist
  • Features
  • Reinforced thermoplastic construction
  • 1-piece, all brass contacts
  • Brass mounting strap with stainless steel grounding clip
  • Panel mount
  • Indoor dry unless protected by additional means
  • Screw mount
  • 14 to 12 AWG wire
