Hubbell Wiring HBL5352R

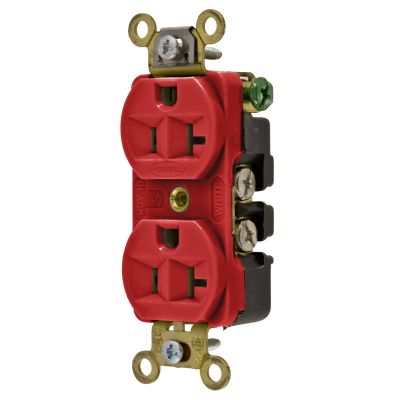

Wiring Device-Kellems HBL5352R 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Receptacles
4487553 HBL5352R
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 20
  • Color: Red
  • Dimensions: 3.28 x 1.33 x 1.05
  • Grade: Commercial/Industrial
  • Horsepower: 1
  • Material: Thermoplastic/Composite
  • Nema Rating: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Back and Side Wired Screw
  • Type: 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount
  • Voltage Rating: 125
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red, Single Pack.
  • Features
  • Finder groove face
  • #8-32 brass nickel plated for neutral terminal screw
  • #8-32 brass multiple drive (green) ground screw
  • Reinforced PET base
  • 0.037 in phosphor bronze power contacts
  • 0.05 in brass mounting strap
  • Withstands 2000 VAC dielectric voltage
  • 14 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Slender/compact design
  • Brass mounting strap
  • Triple wipe contacts
  • 3-wires grounding
  • Traditional duplex receptacle
  • Indoor dry unless protected by additional means
