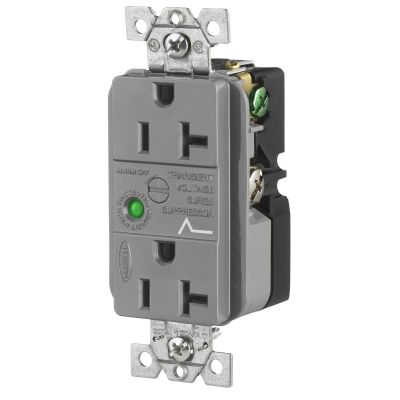

Hubbell Wiring HBL5362GYSA

Wiring Device-Kellems SpikeShield Circuit Guard HBL5362GYSA Decorator Duplex Specification Grade Standard Surge Protection Receptacle With Light and Alarm, 125 VAC, 20 A, 60 Hz, 1 ph Phase
Receptacles
4896865 HBL5362GYSA
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 20
  • Class: Common/Normal Mode
  • Color: Gray
  • Connection: Screw Terminal
  • Material: Composite
  • Mounting: Threaded
  • Operating Temperature: 32 to 140
  • Outlet: Straight Blade
  • Phase: 1
  • Response Time: 5
  • Size: 1.72 in W x 1.6 in D x 4.04 in H
  • Environmental Conditions: UL94 V-2 Flammability Rating
  • Frequency Rating: 60
  • Type: Decorator Duplex Specification Grade Standard
  • Type of Indicators: LED/Audible Alarm
  • Voltage Rating: 125
Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Gray
  • Features
  • Impact resistant nylon face
  • Wraparound, locked on steel mounting strap provides additional support strength for receptacle assembly
  • Automatic self-grounding staple attached to bridge meets NEC requirements
  • Distinctive surge symbol provides quick visual identification
  • Muting screw allows damage alert alarm to be silenced until device is replaced
  • Back and side wiring capability provides easy installation with stranded or solid wire
  • Green grounding screw connected directly to the grounding contacts
  • Automatic self-grounding staple
  • Alert alarm sounds when surge protection is no longer functioning
