Hubbell Wiring HBL7526

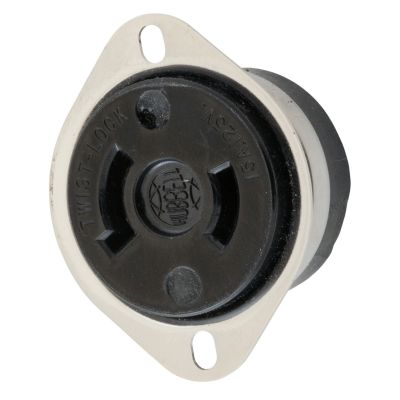

Wiring Device-Kellems Twist-Lock HBL7526 1-Phase Flanged Heavy Duty Non-Grounding Standard Single Screw Mount Locking Flanged Receptacle, 125 VAC, 15 A, 2 Poles, 2 Wires, Black
Receptacles
6954019
HBL7526
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Dimensions: 2.03 x 1.63 x 1.06
- Enclosure: IP20
- Grade: Industrial
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: L1-15R
- Number of Poles: 2
- Number Of Wires: 2
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Flanged Heavy Duty Non-Grounding Standard Single Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Twist-Lock Locking Flanged Receptacle, 1-Phase Flanged Heavy Duty Non-Grounding Standard Single Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 2 Wires, L1-15R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.03 x 1.63 x 1.06 in
- Features
- #5-40 terminal screw
- Stainless steel casing
- Heat resistant thermoset construction
- Metallic flange
- Indoor dry environmental conditions unless protected by additional means
- Screw mounted
- 14 AWG wire
