Legrand CRB5362-SW

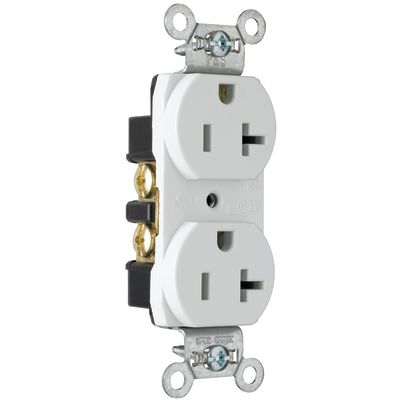

Pass & Seymour CRB5362SW Duplex Smooth Face Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
7669297
CRB5362-SW
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 1.322 in L x 0.78 in W x 3.281 in H
- Grade: Construction/Specification
- Material: Nylon
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Back/Side Wire
- Type: Duplex Smooth Face
- Voltage Rating: 125
Pass & Seymour Straight Blade Receptacle, Duplex Smooth Face, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Construction/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 1.322 in L x 0.78 in W x 3.281 in H Dimensions
- Features
- Corrosion-resistant plated and tabbed steel strap locked in to the face and back body to resist pulling away from face/body assembly
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- 8-hole internal screw pressure plate back wire terminals accept 14 to 10 AWG solid or stranded copper or copper clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- 0.032 in THK, brass triple wipe power contracts for lasting retention
- Smooth face version features an impact-resistant nylon face for ease of cleaning and less dirt build-up
