Legrand L2330R

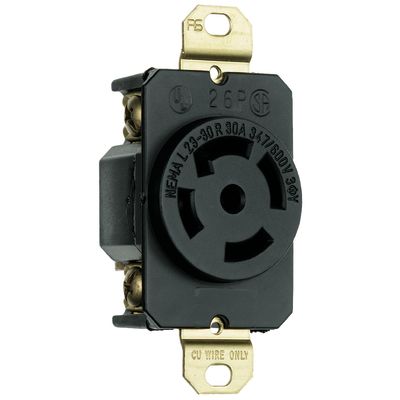

Pass & Seymour L2330-R 3-Phase Single Turnlok Receptacle, 347/600 VAC, 30 A, 4 Poles, 5 Wires, Black/White
Receptacles
180884
L2330R
Legrand
$0.00
/ ea
- Amperage Rating: 30
- Color: Black/White
- Dimensions: 3.3 in H x 1.61 in W x 1.28 in D
- Grade: Commercial/Specification
- Material: Nylon/Thermoplastic
- Nema Rating: NEMA L23-30R
- Number of Poles: 4
- Number Of Wires: 5
- Type: 3-Phase Single
- Voltage Rating: 347/600
Receptacle Single 5wire 30amp 347/600volt Turnlok
- Features
- Compact, impact resistant nylon face and body are ultrasonically welded together for unrivaled strength
- Face color coding by voltage facilitates locating and mating of proper devices
- 1-piece, high grade brass contacts offer excellent conductivity and heat rise resistance
- Clearly marked NEMA configuration, rating and third party listing on each units face
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands
- Side and external screw pressure plate back wire capability
- Accepts 18 to 10 AWG wire size
- Turnlock® locking device
- Quick thread assembly
- Rounded back contour
- Impact and corrosion resistant
- New design external cord grips
