Legrand PA120Y

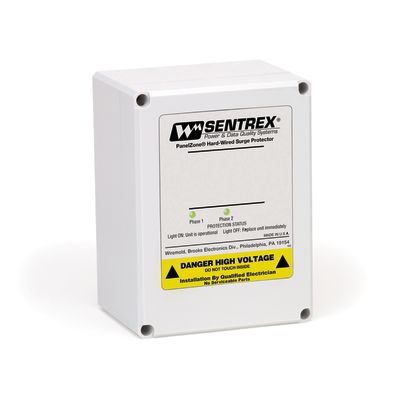

Wiremold Sentrex PA120Y PA Series Non-Modular Surge Protective Device, 120/208Y VAC, 3 Phase
Receptacles
6887607 PA120Y
Legrand
$0.00 / ea

Legrand PA120Y
  • Dimensions: 6-5/16 in L x 4-3/4 in W x 3-9/16 in H
  • Electrical Ratings: 120/208Y VAC
  • Enclosure Type: NEMA 1/2/3/3S/4/4X/12/13
  • Environmental Conditions: -40 to 85 deg C Operating Temperature
  • Indicator Type: Visual Green LED
  • Material: Plastic
  • Modes of Protection: L-N/L-G/N-G/L-L
  • Mounting Type: Hole
  • Phase: 3
  • Series: PA Series
  • Short Circuit Current Rating: 80
  • Type: Non-Modular
For surge protection at the sub panel or near sensitive equipment. Designed for residential and light commercial/industrial applications. Dimensions: 6 5/16" x 4 3/4" x 3 9/16" (160mm x 120mm x 90mm). Ten-year, unconditional product warranty. Electrical Service: 120/208V, 30 4-Wire and Ground. Surge Protection: 80kA. NOTE: Add suffix "-A" to part number for NO/NC dry contact relay for connecting remote monitoring device. Add suffix "-B" to part number for EMI/RFI noise filter. Add "-AB" to part number for both options.
QTY
Add to Wishlist
  • Features
  • For surge protection at the sub panel or near sensitive equipment
  • Up to 160 kA maximum surge current protection per phase
  • Enclosure can be easily drilled or punched for conduit/cable access and positioned to the electrical panel at the discretion of the installer
  • All mode protection is standard on all units
  • NEMA 1, 2, 3, 3S, 4, 4X, 12, 13 rated, watertight, fire-resistant plastic enclosure
  • Well exceeds the capacity of 20 mm MOVs in parallel to manage surges over time
  • Short circuit and thermal fusing
  • Low impedance circuitry
  • Visual indication of protection status
